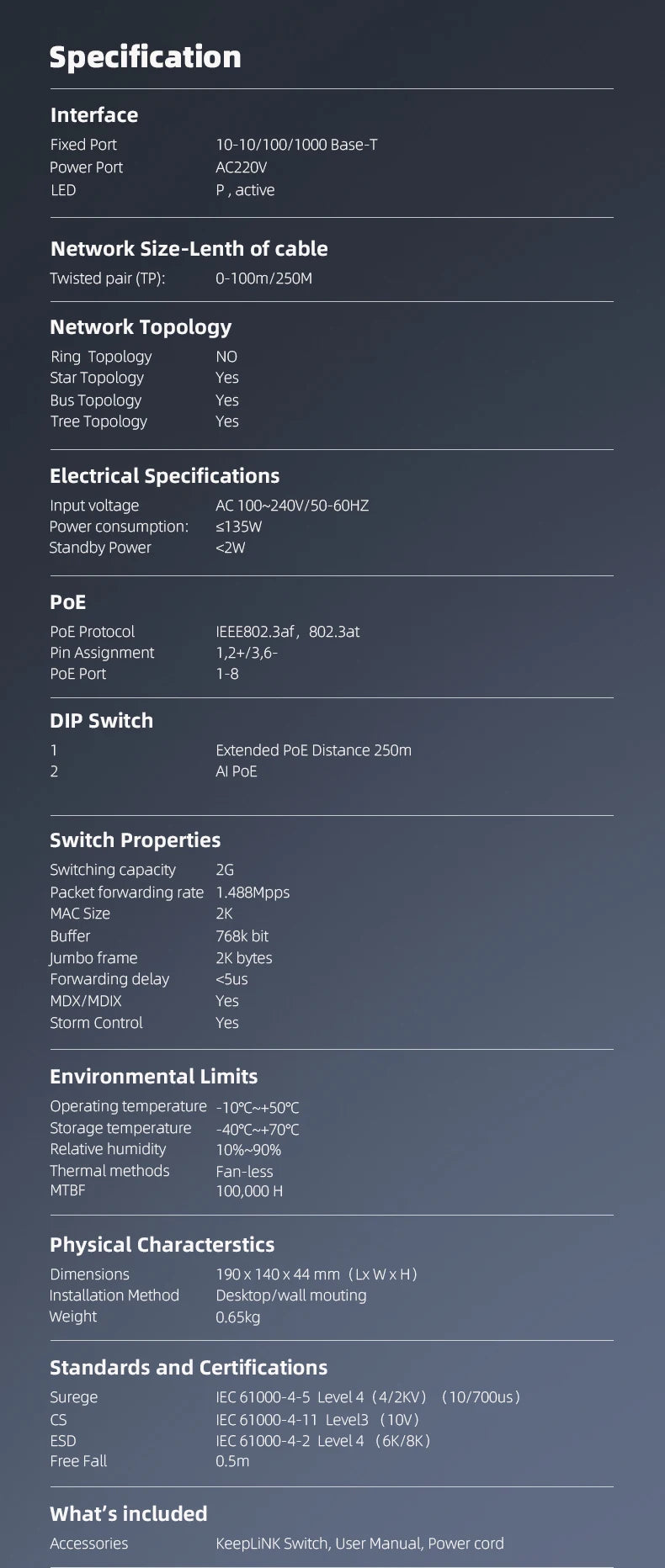

SPECIFICATIONS

Brand Name: keepLiNK

Buffer: 1M

Certification: CE,FCC,RoHS

Choice: yes

Communication Mode: Full-Duplex & Half-Duplex

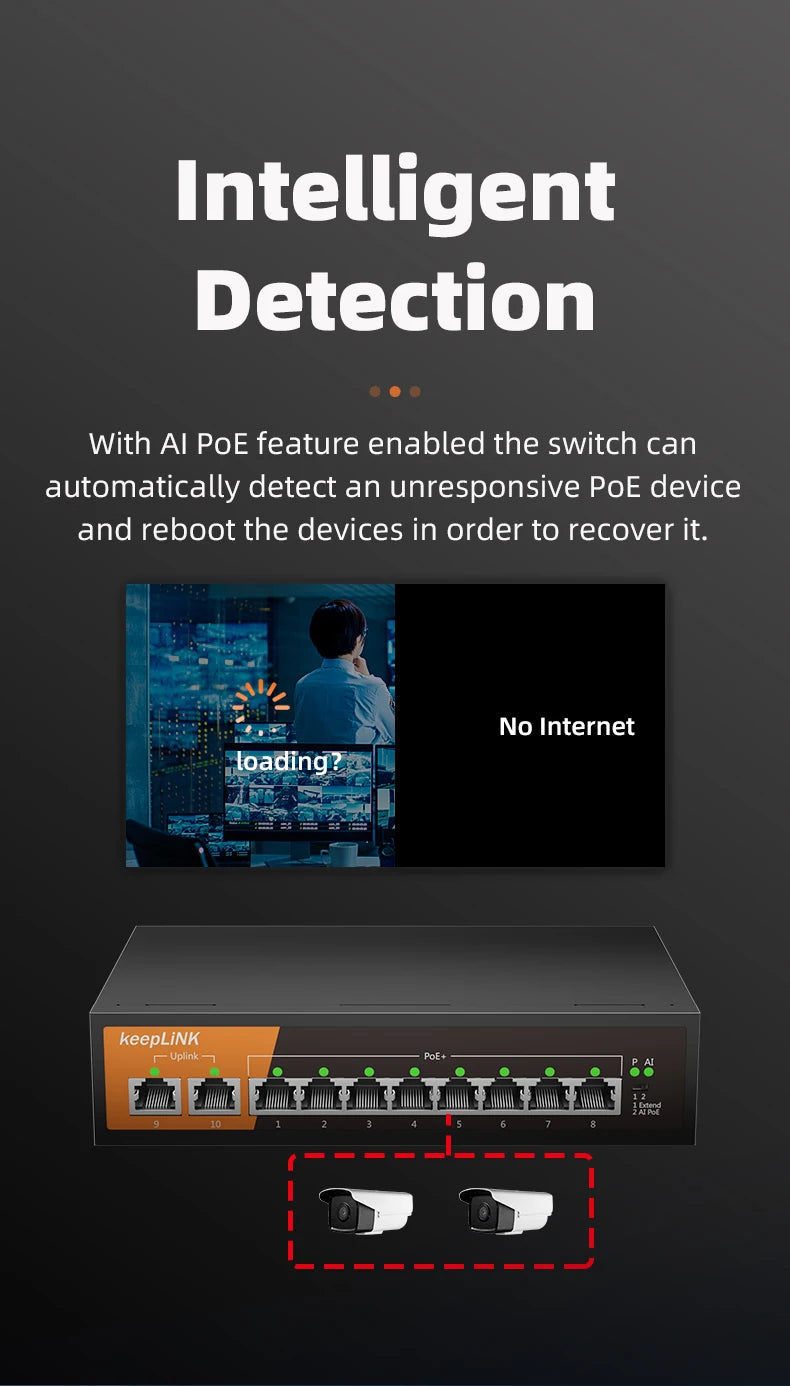

DIP Configuration: 1 for 250m long distance,2 for reboot PoE device

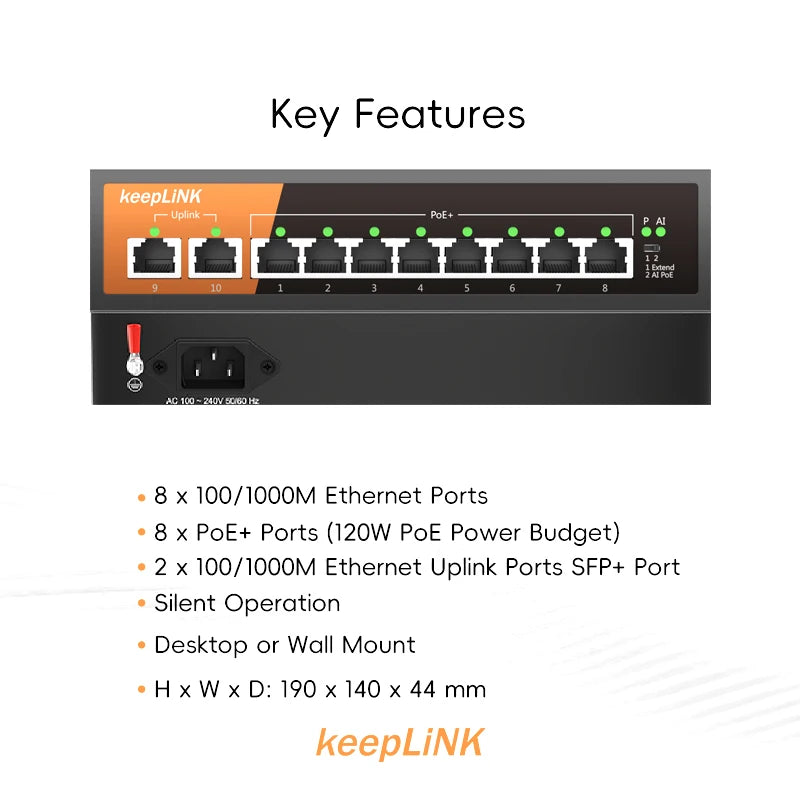

Ethernet Interface: 10 x 10/100/1000

Forwarding delay: <10us

Function: POE,VLAN Support

High-concerned chemical: None

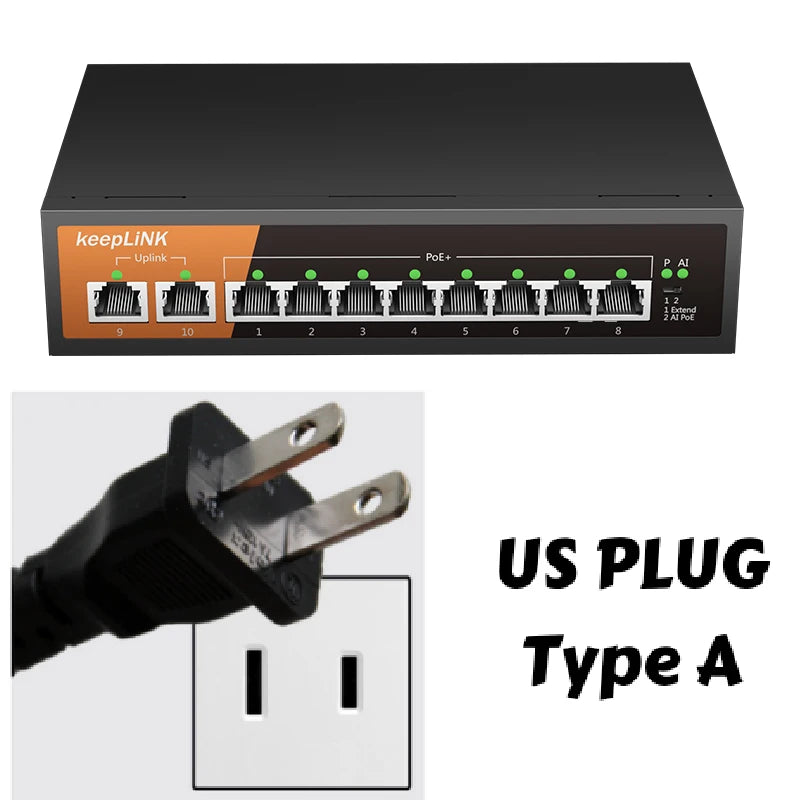

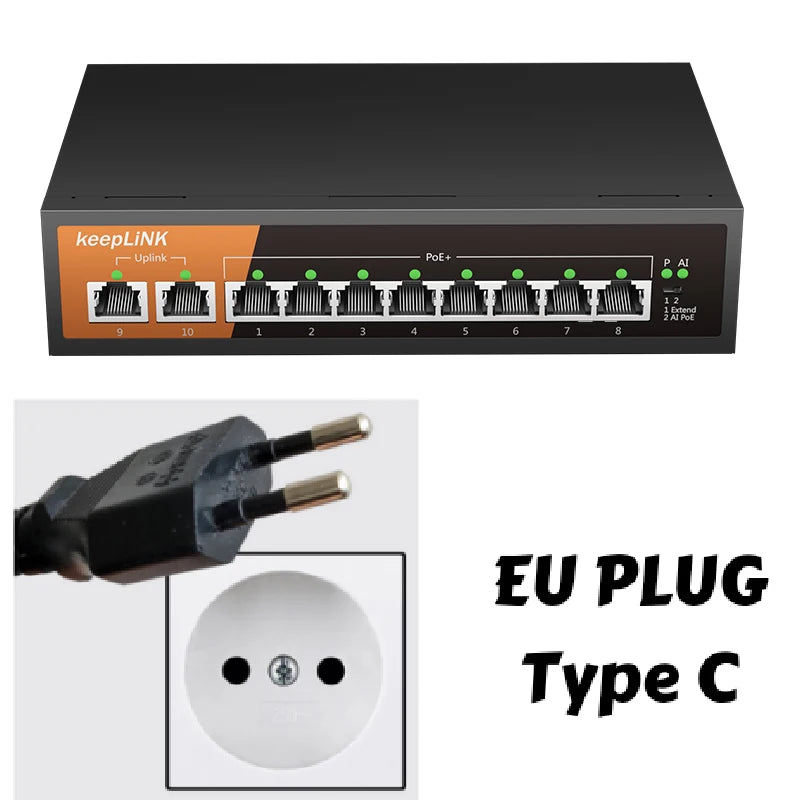

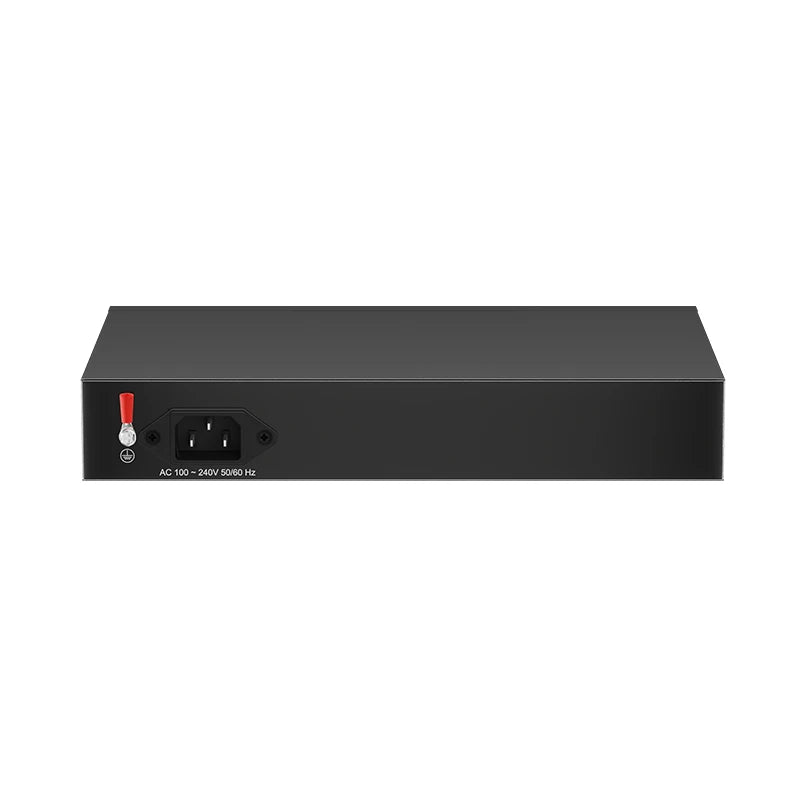

Input Voltage: AC100-240V 50/60Hz

Installation Method: Desktop

Jumbo frame: 2K bytes

MAC address table: 2K

MDI/MDIX: Yes

Max PoE Power each port: 30W

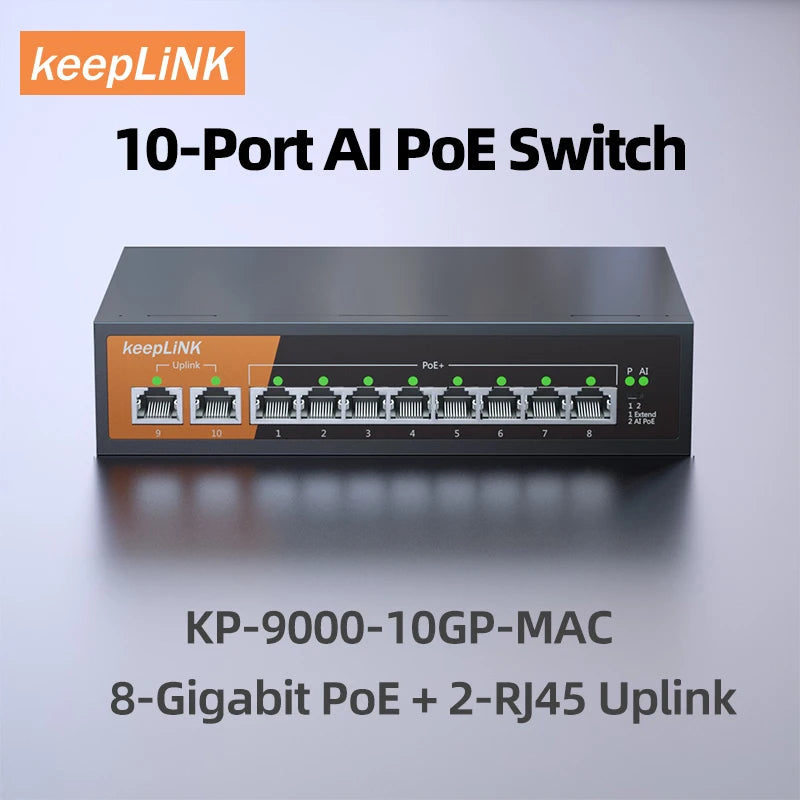

Model Number: KP-9000-208GP

Number of Interfaces: 10

Operating temperature: -10℃~+50℃

Origin: Mainland China

Package: Yes

Packet forwarding rate: 14.88Mpps

PoE Pinout: 1,2,3,6

PoE Port: 1-8

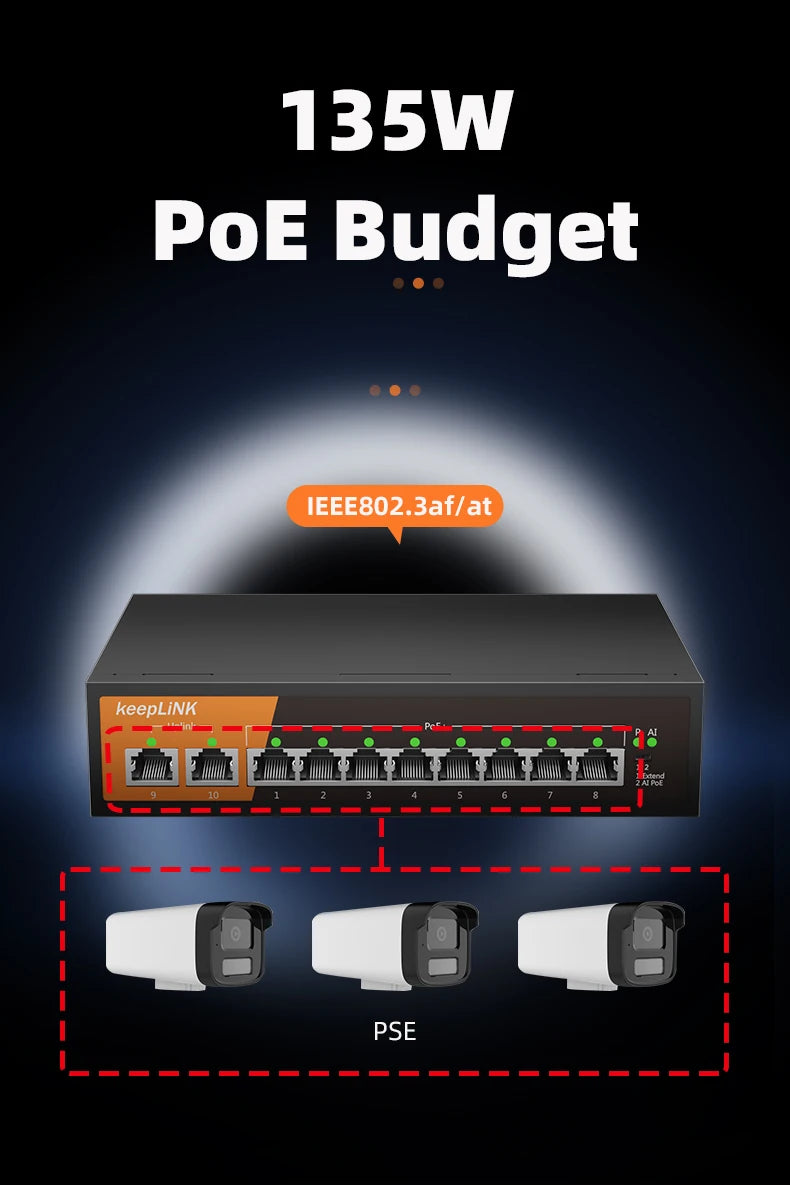

PoE Power Budget: 135W

PoE Protocol: IEEEE802.3af/at

Product Dimension: 190 x 140 x 44 mm

Storage temperature: -40℃~+70℃

Switch Capacity: 20

Switch Type: Gigabit Switch

Switching capacity: 20G

Thermal methods: Fan-less

Transmission Rate: 10000 Mbps

VLAN: yes

Weight: 0.6 kg
